Sample behavioral waveforms for design file lpm_counter0.vhd

The following waveforms show the behavior of lpm_counter megafunction for the chosen set of parameters in design lpm_counter0.vhd. The design lpm_counter0.vhd is a 8 bit down counter. The counter supports a synchronous load of data input.

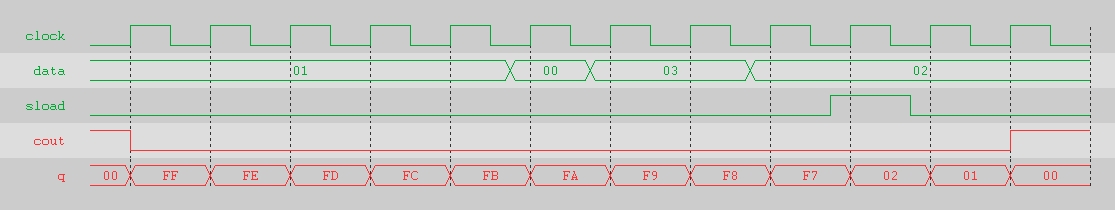

Fig. 1 : Wave showing counter operation.

The output port cout will be asserted at the completion of count sequence. The ports cin and cout are used to chain multiple counters together.

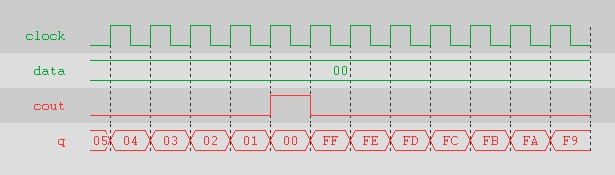

Fig. 2 : Wave showing counter cout and/or modulus operation.

The output port cout will be asserted at the completion of count sequence.
